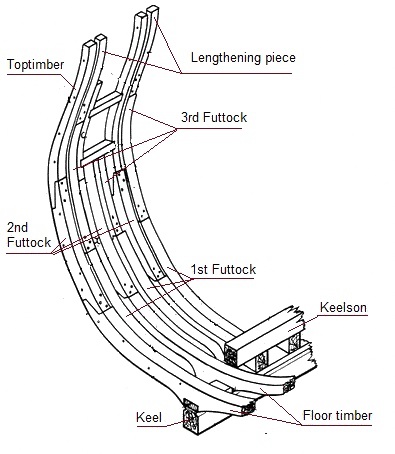

Konstrukcja wręg (proporcje)
Framing the ship as proportion of keel depth
Na podstawie "Sailing man of war 1650- 1850" Peter Goodwin
Poszczególne elemnty wręg są liczone w stosunku do wysokości kila danej jednostki.
Przykładowe wysokości kila:
| Okręt
|
wysokość
w calach
|
Devonshire 1691
III rangi
|
16 1/2
|
Biddeford 1695
VI rangi
|
10
|
Wysokość kila według standardów Royal Navy z 1719
według "Sailing man of war 1650- 1850" Peter Goodwin
Ilość dział
(ship number of guns) |
wysokosć w calach
(keel depth) |
wysokość w milimetrach
(keel depth) |
| 100 | 19 in | 486.4 mm |
| 90 | 18 in | 460.8 mm |
| 80 | 17 in | 435.2 mm |
| 70 | 16 in | 409.6 mm |
| 60 | 15 in | 384 mm |
| 50 | 14 1/2 in | 371.2 mm |
| 40 | 13 1/2 in | 345.6 mm |
| 30 | 12 1/2 in | 320 mm |
| 20 | 12 in | 307.2 mm |
The Floor as a Proportion of Keel Depth
| Ship |
Fore and aft width |
Depth at the centreline |
Depth at the rungheads |
| First Rate |
5:7 |
6:7 |
5:8 |
| Second Rate |
5:7 |
6:7 |
5:8 |
| Third Rate |
13:16 |
31:32 |
7:10 |
| Fourth Rate |
13:16 |
31:32 |
21:32 |
| Fifth Rate |
6:7 |
15:16 |
11:16 |
| Sixt Rate |
3:4 |
3:4 |
11:16 |
